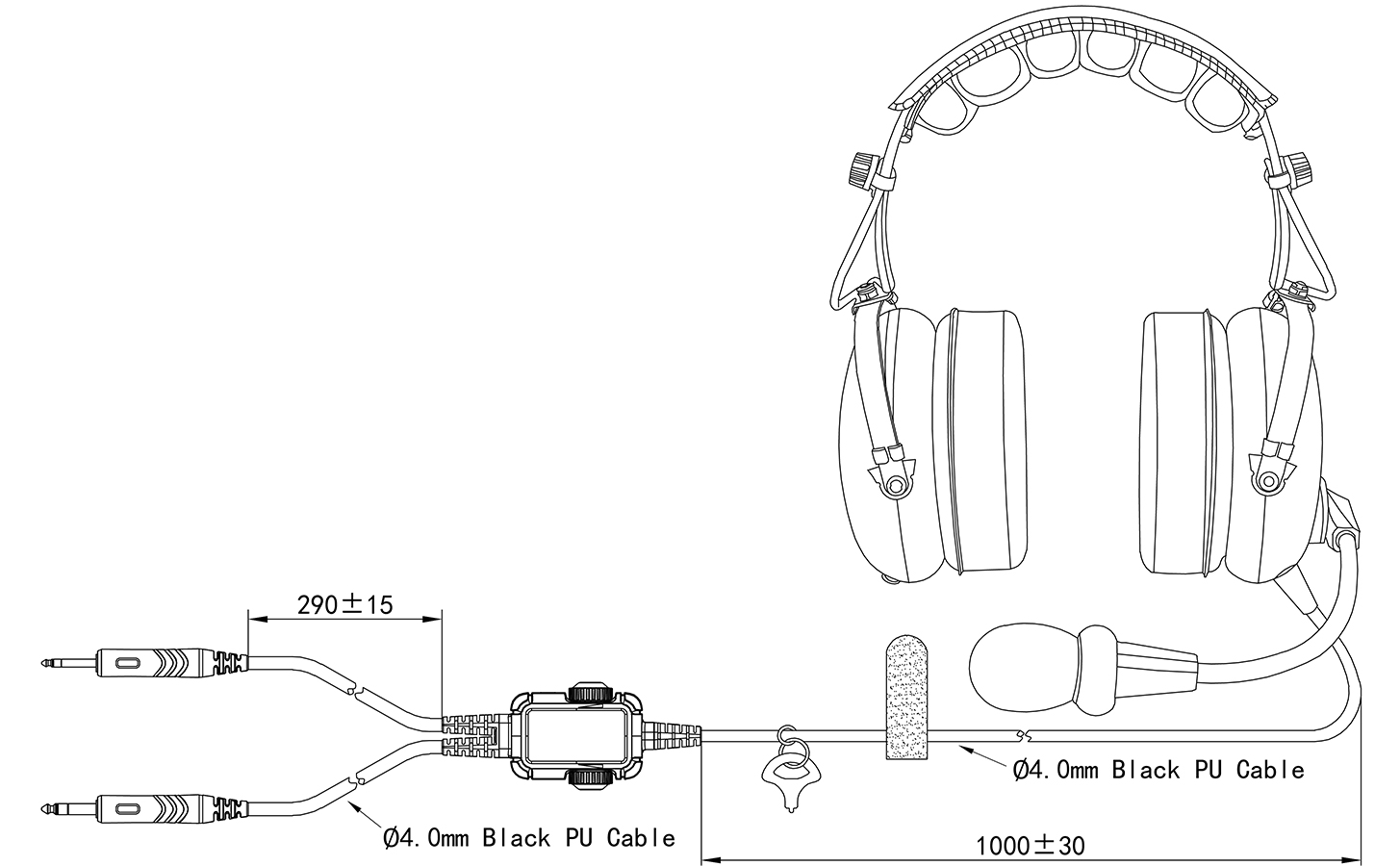

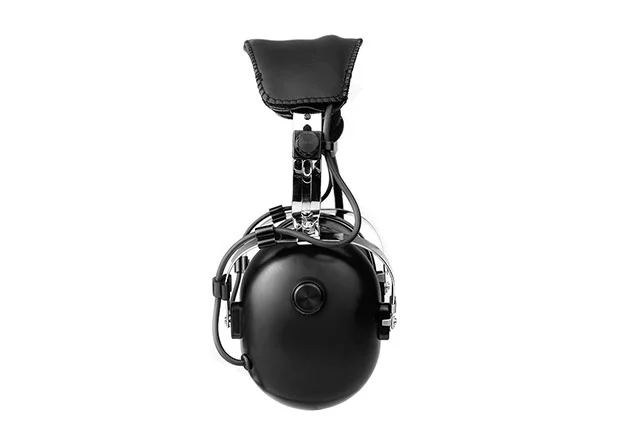

PH-100A Aviation headset features the super soft head pad and extremely comfortable gel ear seals,also features electret noise-cancelling microphone and 23 dB Noise Reduction Rating (NRR) for unrivaled clarity of communications, as well as a durable molded cord assembly that will easily hold up to the demands of the cockpit.
| Microphone Specification: | |
| Sensitivity Range | -46± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
| Impedance Max | 2.2K2 1kHz (RL=2.2KQ) |
| Frequency | 20-20KHz |
| Current Consumption Max | VS=2.0V RL=2.2KQ MAX:500 μA |
| Operation Voltage Range | 2.5-10V (DC |
| Max Sound pressure Level | 110dB S.P.L |
| Speaker Specification: | |
| Impedance | 300Q+15%@1KHZ |
| Sensitivity | 119dB+10%/1Watt 0.5Meter |
| Resonance freq | (FO) 680HZ+20% |
| Frequency respond | F-5KHZ |
| Rated input power | 1.0W |
| Maximum input power | 1.5W |
RayTalk provides custom pnr aviation headset to deliver exceptional sound quality, effective noise reduction, and comfort. Contact us today!
