PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone

PH-100AH Helicopter Headset is very popular headset, at a very competitive price.

Have many benefits:

  • Soft foam head pad and undercut, comfort-half foam half gel ear seals

  • Flexible microphone boom that can be adjusted for perfect placement electret microphone that is made to exceptional pull and flex standards

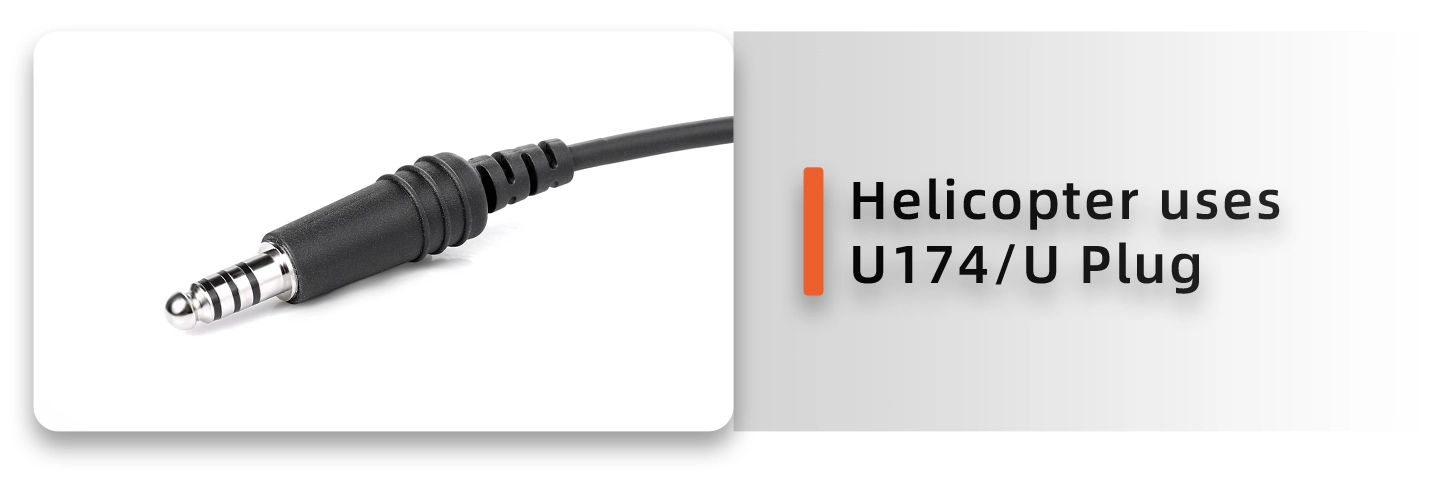

  • Excellent noise attenuation with a 23 dB noise reduction and single U-174/U plug

Get A Quote
PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone

DETAILS

Details of PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone
Details of PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone
Details of PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone
Details of PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone

Specification of PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone


Microphone Specification:

Sensitivity Range

-46± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz

Impedance Max

2.2K2 1kHz (RL=2.2KΩ)

Frequency

20-20KHz

Current Consumption Max

VS=2.0V RL=2.2KΩ MAX: 500 μA

Operation Voltage Range

2.5-10V (DC

Max Sound pressure Level

110dB S.P.L

Speaker Specification:

Impedance

300Ω+15%@1KHZ

Sensitivity

119dB+10%/1Watt 0.5Meter

Resonance freq

(FO) 680HZ+20%

Frequency respond

F-5KHZ

Rated input power

1.0W

Maximum input power

1.5W

Specification of PH-100AH Helicopter PNR Noise Canceling Aviation Headset with Microphone
