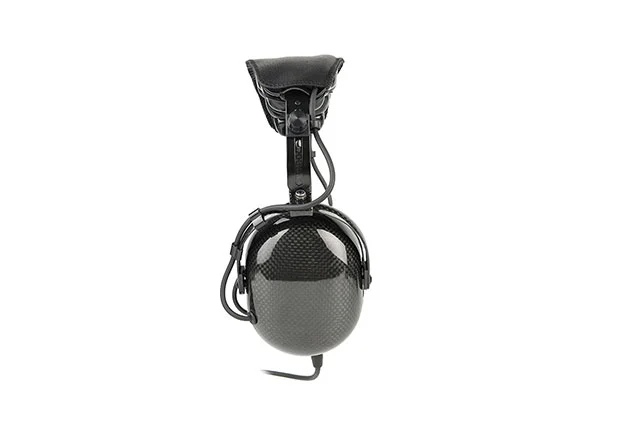

PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets

PH-400AC (Carbon Fiber edition) is a limited series of aviation headsets.

Which most of the structural elements including shells and their handles, are made of carbon fiber. The use of this material, apart from the unique aesthetics, has reduced the weight of the headphones. (only 9 ounces). Pilot first of all he would feel comfortable, especially after long hours of flights.

PH-400AC is equipped with a standard Faux Leather earpads but other types of earpads are also available.

Get A Quote
PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets

DETAILS

Details of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets
Details of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets
Details of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets
Details of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets
Details of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets
Details of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets

Specifications of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets


Microphone Specification:

Sensitivity Range

-52± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz

Impedance Max

2.2K2 1kHz (RL=2.2KΩ)

Frequency

20-20KHz

Current Consumption Max

VS=2.0V RL=2.2KΩ MAX: 500 μA

Operation Voltage Range

2.5-10V (DC

Max Sound pressure Level

110dB S.P.L

Speaker Specification:

Impedance

45Ω+15%@1KHZ

Sensitivity

95dB+10%/1Watt 0.5Meter

Resonance freq

(FO) 680HZ+20%

Frequency respond

F-5KHZ

Rated input power

1.0W

Maximum input power

1.5W


Specifications of PH-400AC ANR Carbon Fiber Active Noise Reduction General Aviation Headsets

RayTalk is dedicated to providing a full range of anr headsets for pilots, we offer cost-effective and reliable solutions.
