PH-400A Premium Aviation Headset made of Carbon Fiber.
PH-400A is unlike any other headset you have ever worn. Hold it for just a second to realize what thousands of pilots have realized - "wow, this is very light."At only 9oz!

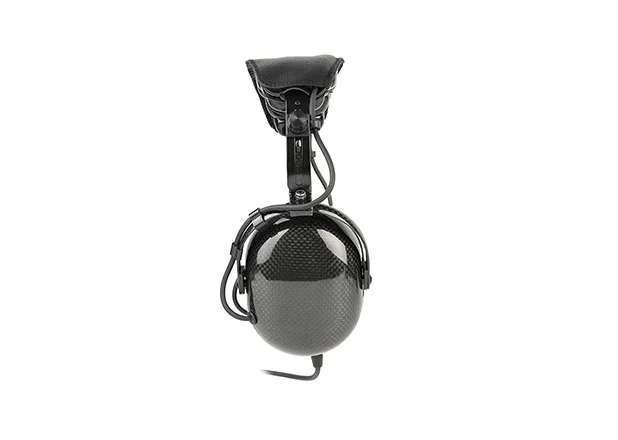

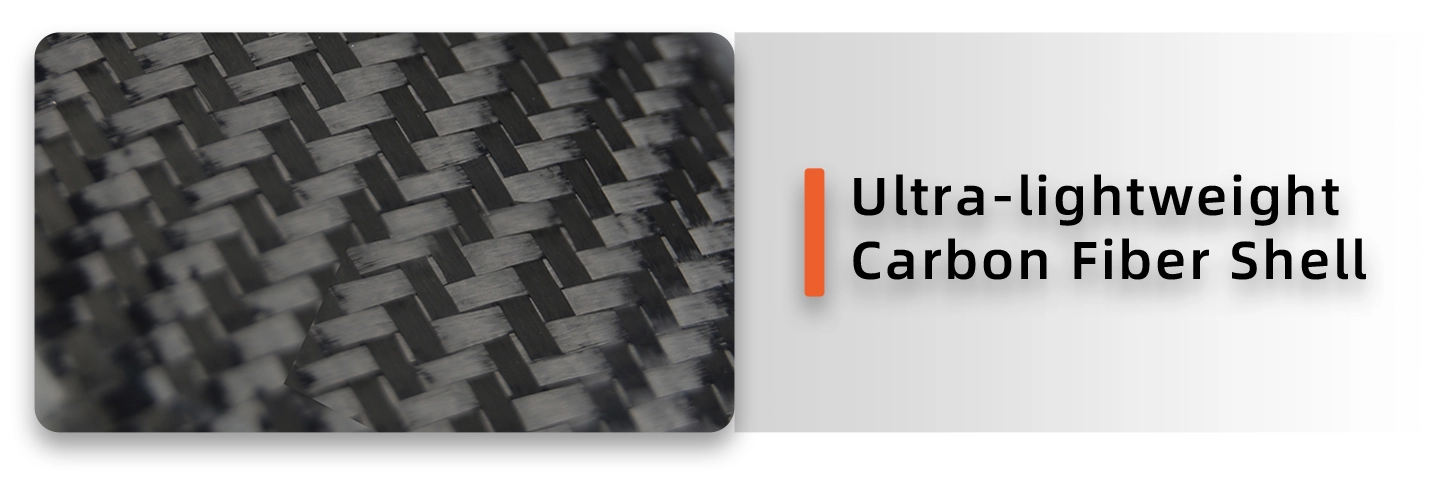

Ear Shell 100% premium carbon fiber design, offers not only PNR 23dB noise reduction, but also weighs nearly half of a typical aviation headset. You will truly appreciate the low-key, low-weight design of PH-400A.
| Microphone Specification: | |
| Sensitivity Range | -46± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
| Impedance Max | 2.2K2 1kHz (RL=2.2KQ) |
| Frequency | 20-20KHz |
| Current Consumption Max | VS=2.0V RL=2.2KQ MAX:500 μA |
| Operation Voltage Range | 2.5-10V (DC |
| Max Sound pressure Level | 110dB S.P.L |
| Speaker Specification: | |
| Impedance | 300+15%@1KHZ |
| Sensitivity | 119dB+10%/1Watt 0.5Meter |
| Resonance freq | (FO) 680HZ+20% |
| Frequency respond | F-5KHZ |
| Rated input power | 1.0W |
| Maximum input power | 1.5W |
As a manufacturing company and professional supplier of pnr headset, RayTalk has committed to the development of communication products for about 15 years.
